Max. SPL @ 10% THD: 129 dB half space (42 Hz – 100 Hz averaged)
Max. SPL peak @ 10 % THD: 131 dB half space
Frequency response +/-3 dB: 42 Hz – X-over
Frequency response -10 dB: 38 Hz – X-over
Power amp output (RMS): 1100 W
Amp type: Class D
LF driver: 1x 18", 4" voice coil
Low-/mid speaker: N/A
HF driver: N/A
Horn directivity: N/A
Active crossover frequency: N/A
Maximum input level: +20 dBu

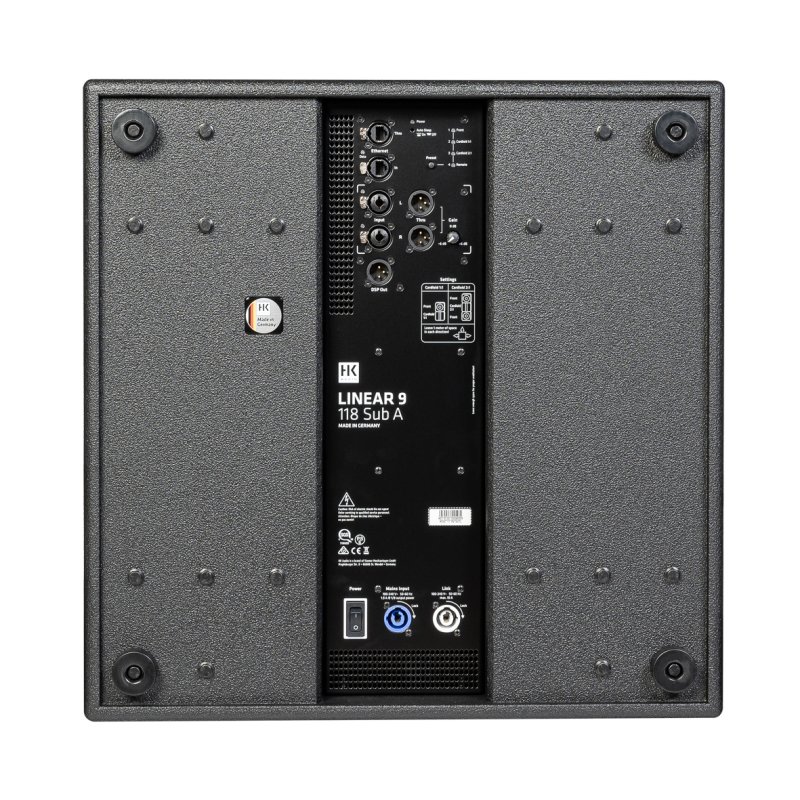

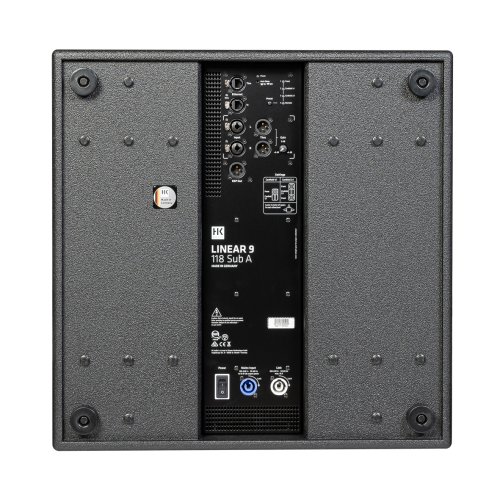

Analog inputs: 2x XLR combo balanced
Analog thru: 2x XLR balanced
DSP Out: 1x XLR balanced
Network port: Ethercon RJ45, 1x In, 1x Thru
Filter presets: Front, Cardioid 1:1, Cardioid 2:1, Remote
Remote software: DSP CONTROL (Windows, macOS)
DSP functions: Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate: 96 kHz
System latency: Less than 2.6 ms
Mains connector: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V
Power consuption: 1.9 A / 100–240 V nominal according to EN 62368-1
Clustering angle: N/A
Angles up (Monitor angle): N/A

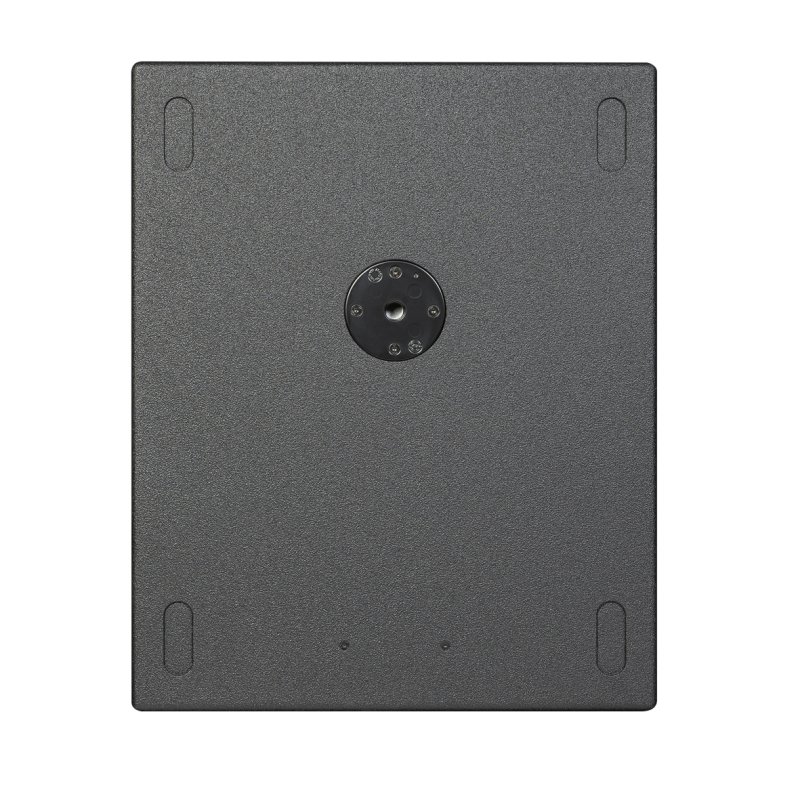

Pole mount: 1x M20
Rigging points: N/A

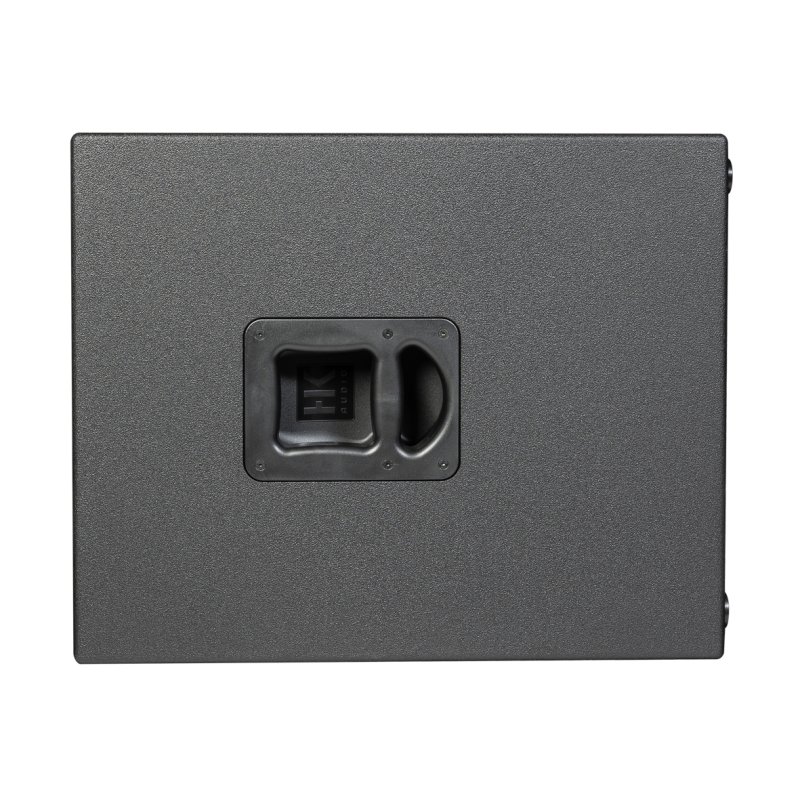

Carrying handles: 2x MultiGrip
Housing: Birch multiplex
Finish: PU coating black
Front grille: 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD): 55 x 56 x 69 cm 21-21/32 x 22-3/64 x 27-11/64"
Weight: 41.5 kg / 91.5 lbs
