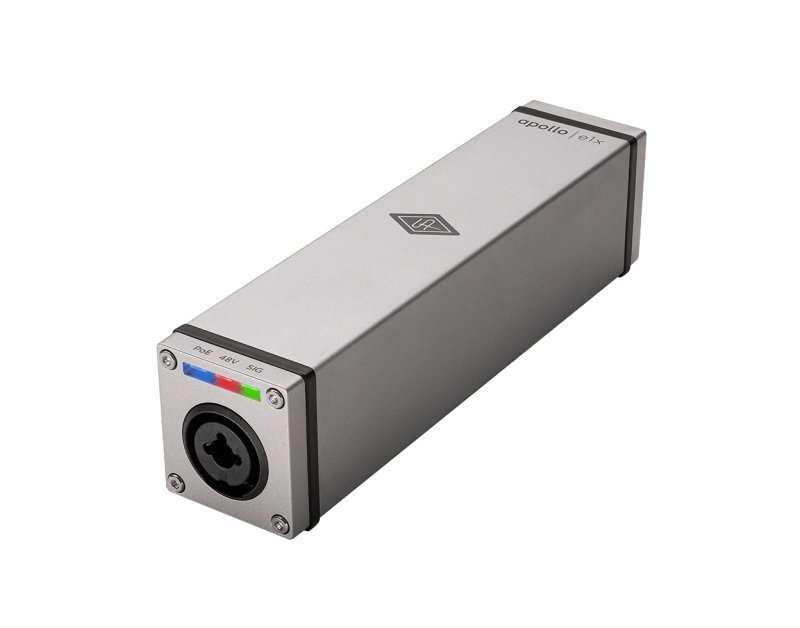

Single-channel Unison™ mic/line preamp for Apollo x16D with Dante networked audio connectivity
Get the sound of iconic mic preamps from API, Neve, Manley, SSL, and more
Assistive Auto-Gain for effortless level setting
Unison support for up to 16 Apollo e1x units per Apollo x16D (DSP resource dependent)

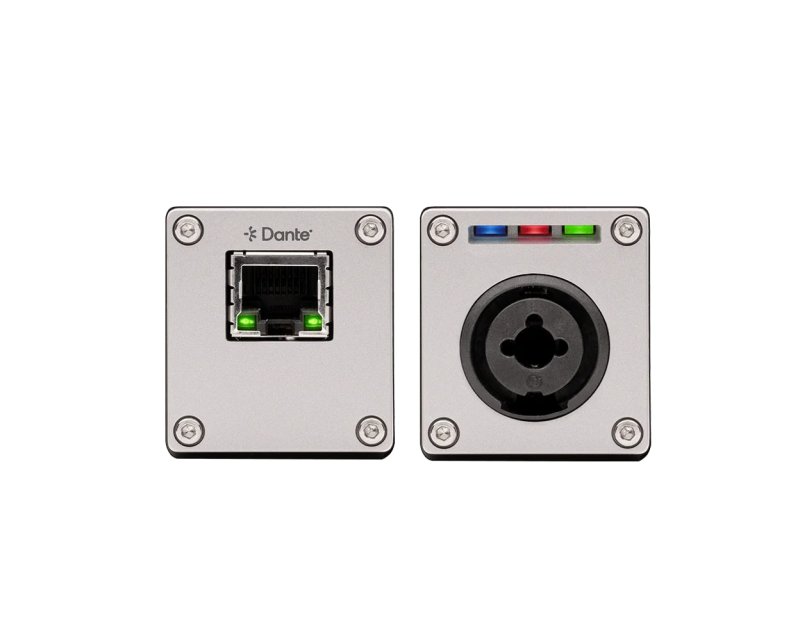

Mic/line input combo jack (XLR mic / 1/4" line input)
Control gain, +48V phantom power, polarity inversion, and low cut over the network with UAD Console
Use with any Dante audio network
Dante routing directly via Dante Controller or in UAD Console with Apollo x16D
Sample rate support: 44.1 to 96 kHz and AES67 support @ 48 kHz (set in Dante Controller)
Dante Device Lock (set in Dante Controller)

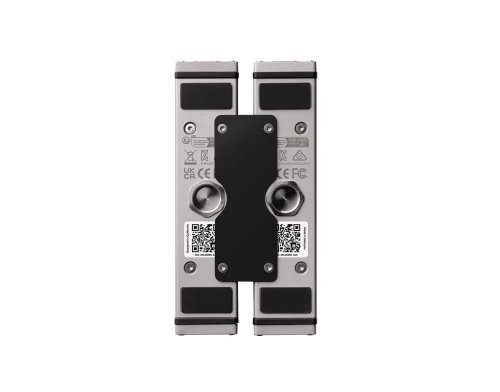

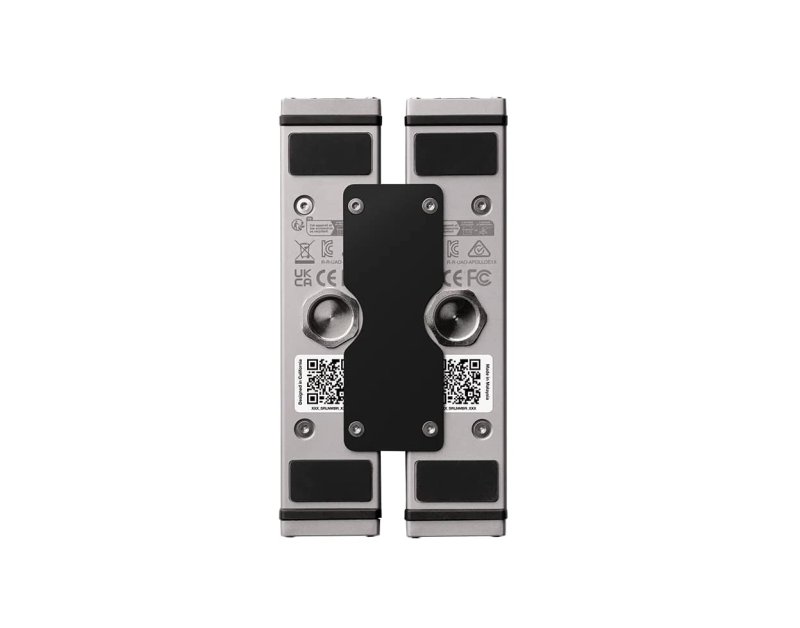

Included coupling bracket to securely link multiple Apollo e1x preamps
Threaded 5/8" mic stand mount
Free industry-leading technical support from knowledgeable audio engineers
Specifications:
Gain range: 10 to 65 dB
Mic input: 120 dB dynamic range, -115 dB THD+N, +25 dBu max. input
Line input: 119 dB dynamic range, -112 dB THD+N, +24 dBu max. input
Power over Ethernet (PoE 802.3af: 4W, 3W typical)
