Max. SPL @ 10% THD: 128 dB half space (70 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD: 131 dB half space
Frequency response +/-3 dB: 67 Hz – 19 kHz
Frequency response -10 dB: 62 Hz – 20 kHz
Power amp output (RMS): 700 W
Amp type: Class D - biamped
LF driver: N/A
Low-/mid speaker: 1x 12", 2.5" voice coil
HF driver: 1", 1.7" voice coil
Horn directivity: 70° x 50° CD horn, rotatable
Active crossover frequency: 1.6 kHz FIR X-over with 60 dB/oct.
Maximum input level: +20 dBu
Analog inputs: 1x XLR combo balanced
Analog thru: 1x XLR balanced
DSP Out: 1x XLR balanced
Network port: Ethercon RJ45, 1x In, 1x Thru
Filter presets: Flat, Monitor, Low Cut, Remote
Remote software: DSP CONTROL (Windows, macOS)
DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate: 96 kHz
System latency: Less than 2.6 ms
Mains connector: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V
Power consuption: 1 A / 100–240 V nominal according to EN 62368-1
Clustering angle: N/A

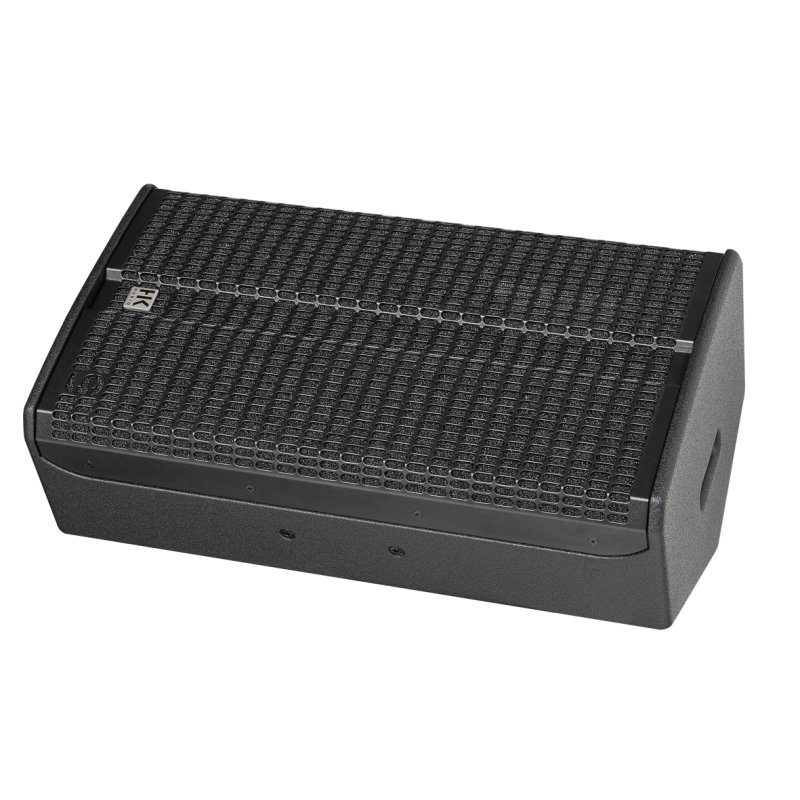

Angles up (Monitor angle): 30°

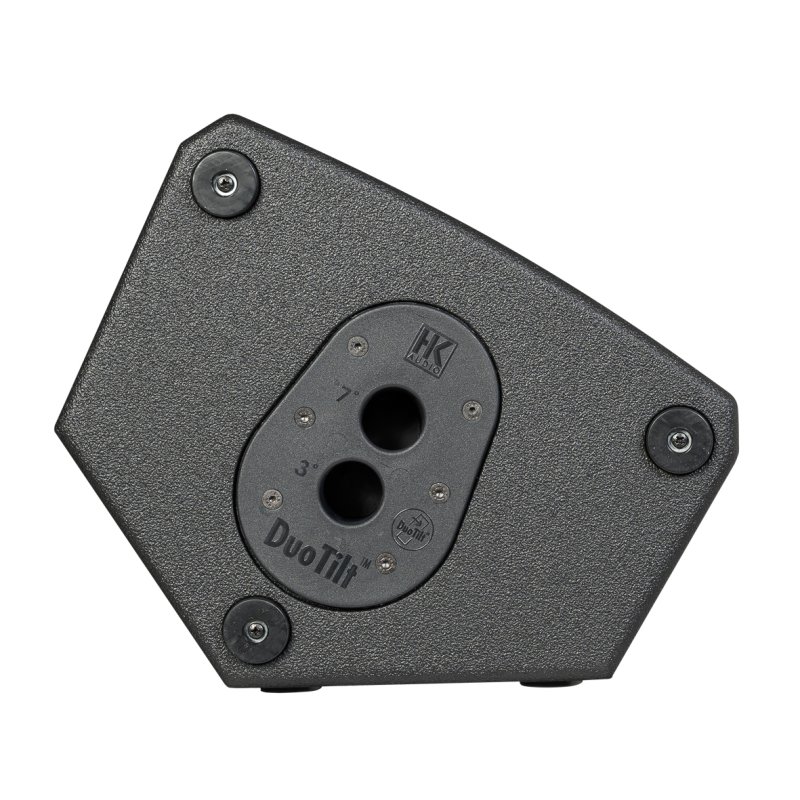

Pole mount: DuoTilt 3°/7°
Rigging points: 5x M8 (AP-8)
Carrying handles: 1x SingleGrip, 1x MultiGrip
Housing: Birch multiplex
Finish: PU coating black
Front grille: 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD): 37 x 67 x 31 cm 14-9/16 x 26-3/8 x 12-13/64"
Weight: 20.5 kg / 45.2 lbs
