Max. SPL @ 10 % THD: 130 dB half space (70 Hz – 12 kHz averaged)
Max. SPL Peak @ 10 % THD: 138 dB half space
Frequency response +/-3 dB: 64 Hz – 12 kHz
Frequency response -10 dB: 59 Hz – 19 kHz
Power amp output (RMS/Peak): 600 / 1,200 W
Amplifier type: Class D – bi-amped
Low/mid speaker: 1 x 15", 3" voice coil
HF driver: 1", 1.7" voice coil
Horn characteristics: 70° x 50° CD horn, rotatable
Active x-over frequency: 1.6 kHz FIR X-over with 72 dB/oct.
Maximum input level: 20 dBu

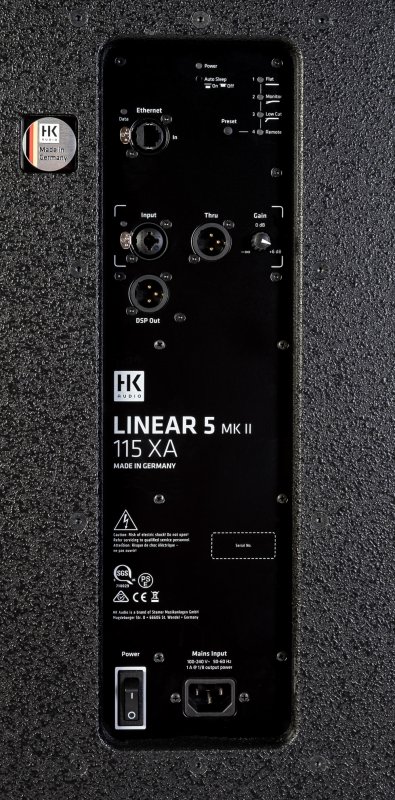

Analogue inputs: 1 x XLR combo balanced
Analogue Thru: 1 x XLR balanced
DSP Out: 1 x XLR balanced
Network port: EtherCON RJ45, 1 x In
Filter presets: Flat, Monitor, Low Cut, Remote
Remote software: DSP CONTROL (Windows, Mac OS)
DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate: 48 kHz
System latency: Less than 2 ms
Mains connection: 1x IEC connector with V-Lock securing system, 100-240 V
Power consumption: 1 A / 100–240 V nominal according to EN 62368-1
Setup angle: 31°
Pole mount: DuoTilt 3°/7°
Rigging points: 3x M8 (AP-8)
Carrying handles: 2 x MultiGrip, 1 x SingleGrip
Housing: Hybrid (birch multiplex/MDF)
Surface: Black acrylic enamel
Front grille: 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD): 45 x 68.5 x 42 cm 17-23/32 x 26-31/32 x 16-17/32"
Weight: 27.6 kg / 60.85 lbs
